X-RAY, gamma-RAY Emission and HIGH-ENERGY charged particles in near-Earth- space according to CORONAS-F satellite data: from maximum to minimum DURING the last solar cycle.



S.N. Kuznetsov, I.N. Myagkova, E.A. Muravieva, V.G. Kurt, V.I. Galkin, B.Yu. Yuskov

 [E-mail: irina@srd.sinp.msu.ru]



Abstract.

The Russian solar observatory CORONAS-F was launched into a circular orbit with an inclination of 82.5o, initial altitude of about 500 km and a final one of ~ 350 km, on July 31, 2001 and operated until December 12, 2005. Two of the main aims of SINP experiment on board CORONAS-F were performed: 1) simultaneous study of solar hard X-ray and gamma-ray emission with charged solar energetic particles (SEP); 2) detailed investigation of how SEP influence the near-Earth space environment. The CORONAS-F satellite orbit permits one to measure both SEP dynamics and variations of the solar particle boundary penetration as well as relativistic electrons of the outer Earth’s Radiation belt during and after magnetic storms. We have found that significant enhancements of relativistic electron flux in the outer radiation belt were observed not only during strong magnetic storms near solar maximum but also after weak storms caused by high speed solar wind streams. The relativistic electrons of the outer ERB are an important source of radiation damage in the near-Earth space.



1.  Introduction

Effects of space weather (and space climate) can range from damage to spacecraft to the disruption of power grids on Earth. The most important part of this damage is caused by solar energetic particles (SEP) – protons and electrons. Basic patterns of solar energetic particle transport by interplanetary shocks were published in e.g. Dorman and Miroshnichenko (1976). Recent experimental results and theoretical studies show that interplanetary shocks driven by Coronal Mass Ejections (CMEs) play a major role in accelerating SEPs (Cane et al (1988), Berezhko et al (2001)). Direct measurements of SEP penetration boundary variations at low altitudes are very important for in the estimation of the local space weather conditions.

Simultaneous measurements of solar flare electromagnetic emission and charged particles provide us with very useful information. Soft X-rays (SXR), hard X-rays (HXR) and g-rays produced at the Sun, their time history and spectrum in a wide energy interval provide us with the most direct information about particle injection and acceleration processes in solar flares. It is well known that the solar flare X-ray and g-ray emission is the result of charged particle interaction with the solar atmosphere - the superposition of electron bremsstrahlung continuum and g-ray line emission, e.g. Ramaty et al. (1988), Ramaty et al. (1994). The observed hard X-ray and/or g-ray spectrum shows that the charged energetic particles were accelerated up to rather high energies during the flare. Solar flare HXR and gamma-ray hardness data is very important in estimating the possible damage that may be caused by a given flare to technical systems.

Variations in Earth's Electron Radiation Belts (ERB) and the SEP cut-off during magnetic storms can also strongly affect the near-Earth environment. Previous studies have shown the relation between high speed solar winds and ERB enhancements several days later (e. g. Li et al. (1988)).

The main goals of the Russian solar observatory CORONAS-F (Complex ORbital Observations in the Near-Earth space of the Activity of the Sun) were the measurements of solar X-ray and g-ray emission and the study of how SEP events and Coronal Mass Ejections (CME) influence Earth’s magnetosphere (see in Kuznetsov et al. (2002)). In this paper we present results related to these goals. Section 2 introduces the experiments and thereafter the main experimental results are given.



2.  Experiment

CORONAS-F was launched into a circular orbit with an inclination of ~82.5o and with an initial altitude of about 500 km on July 31, 2001. It operated until December 12, 2005 with a final altitude of about 350 km, Its orbital period was 94.8 minutes allowing it to perform ~15 number of orbits per day. The space device SONG (SOlar Neutron and Gamma-ray spectrometer) is an instrument of the SKL suite (Solar Cosmic Rays) developed by the Skobeltsyn Institute of Nuclear Physics, Moscow State University. SONG, consisting of a large CsI(Tl) crystal, detected X-ray and gamma-ray emission in a wide energy range 0.03-200 MeV  (Kuznetsov et al. (2006)). Charged particles in different energy ranges (protons with energy 1-90 MeV, electrons 0.3-12 MeV) were measured by semiconductor and plastic scintillator telescopes (Kuznetsov et. al. 2002).



3.  Observations and data analysis discussion

3.1 Soft and Hard X-ray emission

The duty cycle for the detection of solar flares on board CORONAS-F was about 40% as a result of its orbit parameters, so many major flares were lost during August 14, 2001 to September 12, 2005. However, 37 flares with gamma-emission and three solar neutron events were detected by CORONAS-F. Characteristics of the SONG flares (detection time, highest gamma-ray energy channel, HXR fluence) as well as SXR GOES characteristics are presented in Table 1.



Table 1. Solar gamma-ray flares detected by SONG (CORONAS-F) from August, 2001 to September, 2005.

N

Data  dd/mm/yy



UT flare according SXR data (GOES)  UT, hh:mm

SXR class  GOES

Flare coordinates

AR

UT Flare according  HXR SONG data (>500 keV), hh:mm

Emax (channel) SONG, MeV

Fluencies (>500 keV 1/(ñm**2)

Remarks

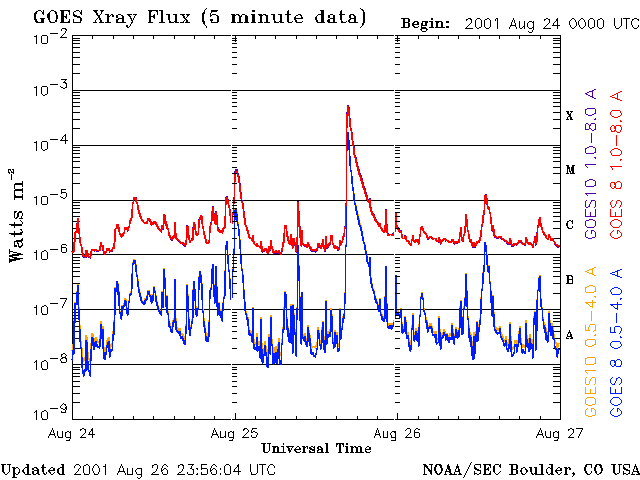

1

25/08/01

16:23-16:45-17:04

X5.3

S17E34

9591

16:29-16:39

60-100

7150

data till 16:39

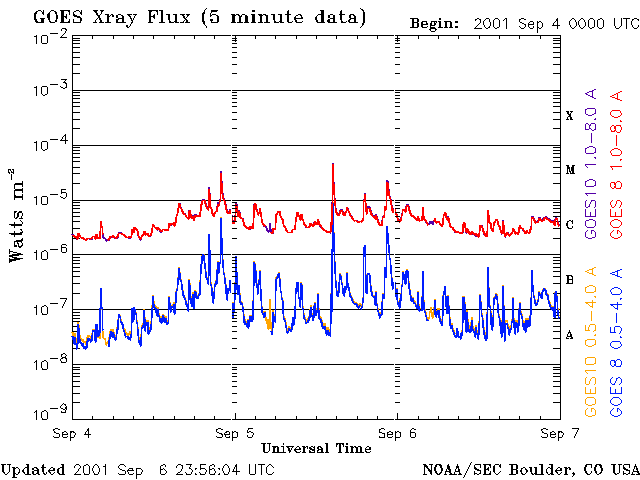

2

05/09/01

14:25-14:32-14:34

M6.0

N15W31

9601

14:28-14:29

 1.3-4

17

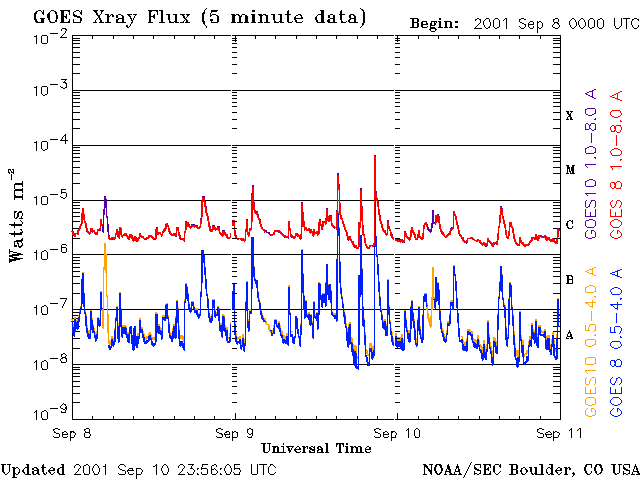

3

09/09/01

15:10-15:16-15:21

M3.4

S17E03

9607

15:12-15:13

 .5-1.3

4.3

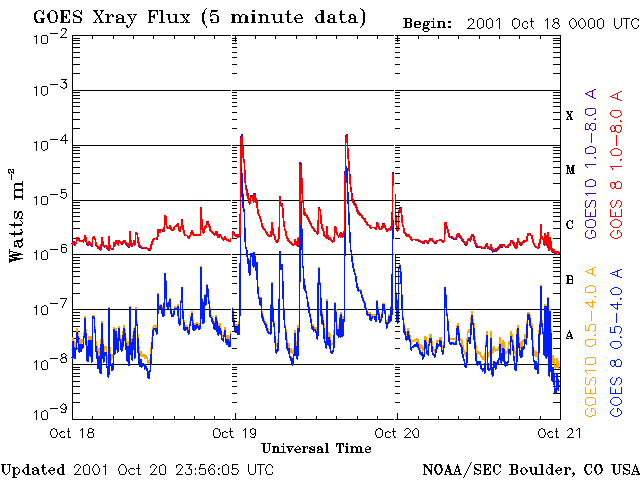

4

19/10/01

16:13-16:30-16:43

X1.6

N15W29

9661

16:24-16:26

 1.3-4

112

 ERB from 16:28

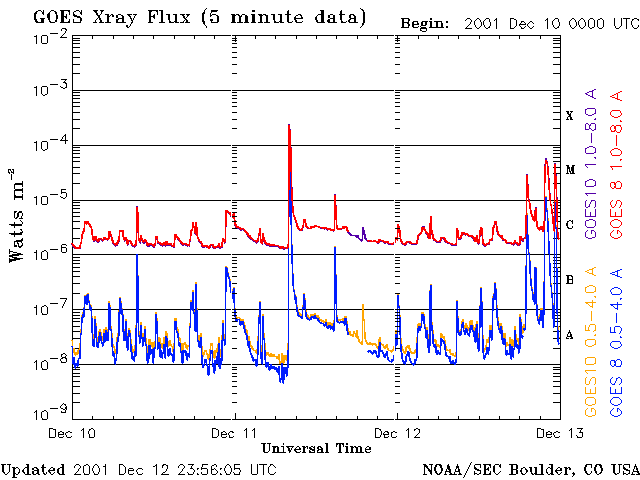

5

11/12/01

07:58-08:14-08:08

X2.8

N16E41

9733

08:04-08:08

 7-15

78

Polar cap

6

20/02/02

05:52-06:12-06:16

M5.1

N12W72

9825

06:09-06:11

 4.4-7.7

102



7

20/05/02

15:21-15:27-15:31

X2.1

S21E65

9961

15:25-15:27

 7.7-16.5

87



8

17/07/02

06:58-07:13-07:19

M8.5

N22W17

0030

07:12-07:14

 1.6-4.8

91

Gap 7:12:30-7:13

9

20/07/02

21:04-21:30-21:54

X3.3

-

-

21:27-21:29

0.6-1.6

65

ERB from 216:29

10

20/08/02

08:22-08:26-08:30

M3.4

S10W38

0069

08:25-08:26

 4.8-8.4

60



11

21/08/02

01:35-01:41-01:45

Ì1.4

S11W47

0069

01:38-01:40

0.6-1.6

3.7



12

21/08/02

05:28-05:34-05:36

X1.0

S12W51

0069

05:32-05:33

 4.8-8.4

17



13

24/08/02

00:49-01:12-01:31

X3.4

S12W51

0069

00:59-01:06

 4.8-8.4

170

ERB from 01:07

14

29/08/02

12:31-12:55-13.21

M7.1

S12W73

0069

12:49-12:50

0.6-1.6

4.5



15

30/08/02

12:47-13:29-13:35

X1.5

N15E74

0095

13:28-13:29

 4.8-8.4

32



16

26/04/03

03:01- 03:06-03:12

Ì2.1

S25W34

0338

03:03-03:04

 1.7-5.2

8



17

26/04/03

08:01-08:07- 08:09

M2.0

       -

   -

08:05-08:07

  5.2-9.1

25

ERB from 08:07

18

27/05/03

22:56-23:07-23:13

X1.3

S07W17

0365

23:04-23:07

   5.2-9.1

105

ERB from 23:12

19

28/05/03

00:17- 00:27-00:39

X3.6

S07W17

0365

00:22-00:29

   5.2-9.1

450

ERB till 00:20

20

29/05/03

00:51-01:05- 01:12

X1.2

       -

    -

01:02-01:07

   5.2-9.1

76



21

23/10/03

08:19- 08:35-08:49

X5.4

S21E88

0486

08:22-08:30

   5.2-9.1

  --

inside outer ERB

22

24/10/03

02:27- 02:54- 03:14

M7.6

S19E72

0486

02:45-02:47

0.65-1.7

24



23

26/10/03

05:57- 06:54- 0733

X1.2

S15E44

0486

06:16-06:19

0.65-1.7

>60

ERB till 06:15

24

28/10/03

09:51-11:10-11:24

Õ17.2

S16E08

0486

11:02-11:13

80-130

>9200

SEP from 11:13

25

29/10/03

20:37-20:49-21:01

X10.0

S15W02

0486

20:40-20:55

 5.2-9.1

1270



26

04/11/03

19:29-19:53-20:06

X28

S19W83

0486

19:40-19:57

130-260

>8100

ERB 19:40-09:46

27

17/11/03

08:55- 09:05-09:19

M4.2

S01E33

0501

08:58-09:03

1.7-5.2

42



28

20/11/03

07:35-07:47- 08:38

M9.6

N01W08

0501

08:04-08:18

0.65-1.7

210



29

06/01/04

06:13-06:29-06:36

M5.8

N05E90

0537

06:22-06:24

 1.7-5.2

31



30

30/10/04

16:18-16:33-16:37

M5.9

N13W28

0691

16:24-16:25

0.7-1.8

14

ERB till 16:24

31

01/01/05

00:01-00:31-00:39

X1.7

N06E34

0715

00:28-0:32

2-6

45



32

17/01/05

09:59-09:52-10:07

X3.8

N15W25

0720

09:52-10:00

2-6

>25

gap 09:16-09:52

33

20/01/05

06:36-07:01-07:26

X7.1

N14W61

0720

09:44-09:56

90-150

3620



34

14/07/05

05:57-07:25-07:43

M9.1

N09W90

0786

07:23-07:24

2-6

5



35

09/09/05

19:13-20:04-20:36

X6.2

S12E67

0808

20:00-20:11

6-10.5

 -

shade till 20:00

36

10/09/05

21:30-22:11-22:43

X2.1

S13E47

0808

21:53-22:03

0.75-2

9



37

12/09/05

08:37-09:03- 09:20

M6.2

S11E25

0808

08:46-08:48

2-6

3





3.2 Solar proton penetration boundary variations

Due to the orbit of the satellite solar energetic particles were measured by the CORONAS-F experiment only in the south and north polar caps during 15-20 minute intervals every ~45 minutes. Hence it should be highlighted that the solar relativistic electron data (1.5-3, 3-6 and 6-12 MeV) obtained by CORONAS-F from solar maximum (2001) to solar minimum (2005) are unique. Especially important are the solar extreme events measured during October and November, 2003 and January 2005. Solar event studies for November 2001, October-November 2003 and November 2004 were published in papers by Veselovsky et al. (2004), Panasyuk et al (2004), Yermolaev et al, (2005).

The CORONAS-F experiment (due to its low polar orbit) has demonstrated that for the estimation of possible SEP damage both the intensity of energetic solar particles and the data concerning the boundaries of solar particle penetration in the Earth’s magnetosphere are very important. High energy solar particle penetration in the polar caps during the main phase of magnetic storms is one of the important sources of radiation danger in the near-Earth space, especially for low-altitude satellites. The size of the proton penetration area depends on proton energy and on geomagnetic conditions. Some earlier CORONAS-F results of similar studies were published in Panasyuk et al (2004), Kuznetsov et al. (2002), Yermolaev et al, (2005).



Fig.1. SEP penetration boundary variations during geomagnetic storms in May 2005. Dst-variation is shown by solid line.



As an example, in Figure 1 we present and discuss the variations observed in the SEP penetration boundary (or SEP cut-off rigidity variations) measured by CORONAS-F (protons with energies 1-5 MeV) during magnetic storms during the time period 19 to 21 August 2002. It is clearly seen that the proton flux on the penetration boundary does decrease abruptly. Therefore it is possible to apply different criteria to the analysis of the penetration boundary position. As was done in Kuznetsov et al. (2002) and Yermolaev et al, (2005), in this work we use the traditional “Skobeltsyn Institute of Nuclear Physics Lomonosov Moscow State University” criterion – “twice below the maximum of the SEP flux”. The values of penetration boundary obtained during the morning magnetic local time (MLT) are marked as plusses, during evening MLT as solid diamonds.

For comparison, time variation of the Dst index is also shown in Figure 1. In regard to Dst the main results are: (a) CORONAS-F data dynamics is in good agreement with Dst both for the morning and evening sectors of MLT, but for the evening sector the SEP penetration was deeper; (b) the penetration boundary for the evening sector was shifted closer to Earth (to L~3) not only during the strong magnetic storm near noon of August 21 (Dst= -115 nT) but also during the significantly weaker storm which took place 1.5 days earlier  (Dst= -70 nT) and even during the very small storm of August, 19 (Dst= -55 nT).  This observed effect - the penetration of SEPs during even rather weak magnetic storms - is very important for space weather forecasting studies.



3.3 Outer electron radiation belt variations

Earth’s electron radiation belt (ERB) dynamics is one of the most important physical processes occurring during magnetic storms. The upper panels in figures 2a and 2b) show the relativistic electron dynamics in the outer radiation belt during April-June 2004 (a) and March-May 2005 (b). The electron flux is shown by grey-scale color. White color indicates the absence of data mostly connected with telemetry problems. During both time periods there were no significant solar flares and SEPs according to CORONAS-F (1.5-3 MeV) measurements. The X and Y axes show the day and the L-shell value respectively. Middle panel figures show the Dst index, and the bottom ones the solar plasma wind speed.

It is seen that the most significant enhancements of relativistic electrons were observed some days after the occurrence of small magnetic storms connected with incoming high speed solar wind streams. During the total operation time of CORONAS-F we have found more than ten such cases. The observed time-delay between solar wind speed enhancements and relativistic electrons in ERB supports previous work and is very useful for predictions studies.

Such electrons are sometimes named "killer electrons" as they are very dangerous to electronic devices, in particular the microcircuits that are used in space. Relativistic electrons of the outer ERB produce volumetric ionization in microcircuits of spacecrafts and breakdown their normal operation. Therefore, the measurement of relativistic electron dynamics has both practical and scientific interest (e.g. Myagkova (2005)) and references therein). We suggest that the high enhancements of relativistic electrons in the outer ERB founded in CORONAS-F experiment is necessary to take into account for space weather and space climate studies.

                a)

b)

Fig. 2. Relativistic electron flux variation in the outer ERB in April-June 2004 (a) and March-May 2005 (b) according to CORONAS-F data. Middle  panel shows the Dst index, bottom ones the solar plasma wind speed





4.  Summary



In this paper we have presented observational results regarding X-ray, γ-ray and particle (protons and electrons) observations obtained by the CORONAS-F spacecraft. The main results are listed here:

Measurements of solar flare HXR and gamma-ray emission permits one to estimate the hardness of the flare emission so as to better be able to predict the possible damage that can be caused by the flares.

The monitoring of SEP penetration boundaries in the Earth’s magnetosphere is useful also during magnetic storms, since solar energetic particles can penetrate deep into the Earth’s magnetosphere during the main phase of even rather weak magnetic storms. In particular due to measurements of the SEP penetration boundaries one has the opportunity to estimate the radiation damage for different space missions.

The CORONAS-F observations provide evidence that the observed significant variations of relativistic electrons in the outer ERB at low altitudes (from 350 to 500 km) during and after geomagnetic storms can be connected both with strong magnetic storms caused by CMEs and with small magnetic storms connected with incoming high speed solar wind streams.

Results are important for space weather effect studies, especially how they are a function of solar activity.

.

Acknowledgements

This work has been partly supported by grant N 05-02-17487 of Russian Foundation for Basic Research



References

Berezhko, E.G., Petukhov, S.I., and Taneev, S.N., “Acceleration of solar cosmic rays by shock waves in the solar corona”, Izvestiya RAN, Phys. Ser.  64, 3, 339-342, 2001.

Cane, H.V., Reames, D.V., von Rosenvinge, T.T. The role of interplanetary shocks in the longitude distribution of solar energetic particles, J. Geophys. Res. 93, A9,  9555-9567, 1988.

Dorman, L.I., Miroshnichenko, L.I. Solar Cosmic Rays. Nauka, Moscow, 1968. (In Russian), English Edition for NASA by Indian National Scientific Documentation Center, Delhi, 1976

Yermolaev, Yu. I., Zelenyi, L. M., Zastenker, G. N., Petrukovich, A. A. et al., A Year Later: Solar, Heliospheric, and Magnetospheric Disturbances in November 2004. Geomagnetism and Aeronomy. 45, 6, ,681-719, 2005.

Kuznetzov, S.N., Kudela, K., Ryumin, S.P., Gotselyuk, Yu.V. CORONAS-F satellite - tasks for study of particle acceleration. Adv. Sp. Res. 30,  1857-1863, 2002.

Kuznetsov, S. N., Myagkova, I. N., Yushkov B. Yu. Dynamics of the Boundary of Solar Electron Penetration into the Earth’s Magnetosphere in November 2001.  Geomagnetizm & Aeronomy. 45, 2,  51-155,  2005.

Kuznetsov S. N., V. G. Kurt, I. N. Myagkova, B. Yu. Yushkov, and K. Kudela, Gamma-Ray Emission and Neutrons from Solar Flares Recorded by the SONG Instrument in 2001–2004,  Solar System Research,  V. 40, No. 2, pp.104-112, 2006

Li X., D. N. Baker, M. Temerin, D. Larson, R. P. Lin, G. D. Reeves, M. Looper, S. G. Kanekal, and R. A. Mewaldt.  Are energetic electrons in the solar wind the source of the outer adiation belt? // Geophysical Research Letters, vol. 24, No. 8, p. 923–926, 1997

Panasyuk, M. I.,  Kuznetsov, S. N., Lazutin, L. L.,  Avdyushin S. I. et al. Magnetic Storms in October 2003, Cosmic Research.. 42, 5, 489-534, 2004

Ramaty, R., Dennis B. R.,  Emslie A.G., Gamma-ray, neutron and hard x-ray   studies and requirements for a high-energy solar physics facility. Solar Phys. 118,  17-46, 1988

Ramaty, R., Mandzhavidze N., Theoretical models for high-energy solar flare emission, in: J. M. Ryan, W. T. Vestrand (Eds.), AIP Conference Proceedings,   no. 294, "High Energy Solar Phenomena, New Era of Spacecraft Measurements",   American Institute of Physics, New York, USA, 26-44, 1994.

Veselovsky, I.S, Panasyuk, M. I., Avdyushin, S. I, Bazilevskaya, G. A.  et al. Solar and Heliospheric Phenomena in October–November 2003: Causes and Effects. Cosmic Research.,  42, 5, 435-488, 2004.
